The VAT rates applicable in Italy are configured in the respective RT devices (e.g. FP-90III RT or FP-81II-RT). The mapping is performed using so-called “Departments” (Italian: “reparti”).
Default setting
The RetailForce fiscal module Italy of the middleware uses the following mapping for the assignment of VAT rates.
If your printer has different settings, please correct this so that the mapping is correct.
Attention: If you notice that the VAT rates on the printout differ from those transferred in the payload, the mapping is incorrect and must be corrected!
| Department no. (EPSON) | VAT rate | vatIdentification (RF) |
| 1 | 22% | 1 |
| 2 | 10% | 2 |
| 3 | 4% | 4 |
| 4 | 5% | 3 |
| 10 | 0% - N1 (Natura Code) | 5 |
| 11 | 0% - N2 | 6 |
| 12 | 0% - N3 | 7 |
| 13 | 0% - N4 | 8 |
| 14 | 0% - N5 | 9 |
| 15 | 0% - N6 | 10 |

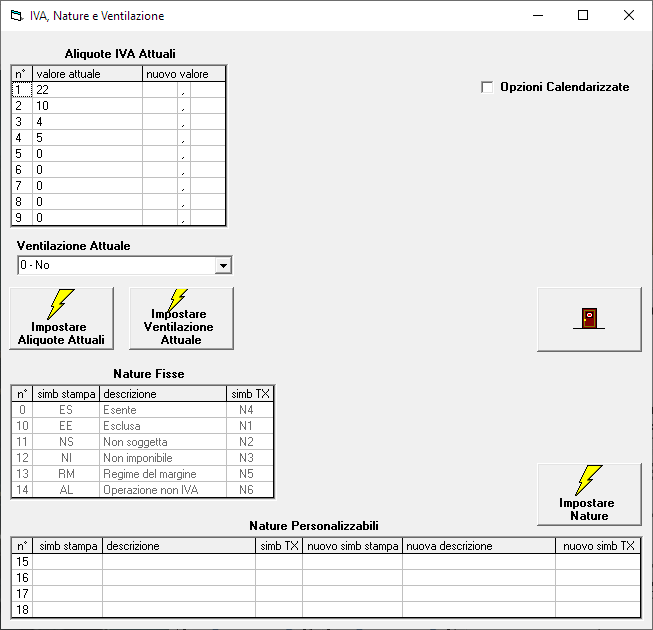

Setting IVA (VAT rates) in EPSON FP-Wizard:

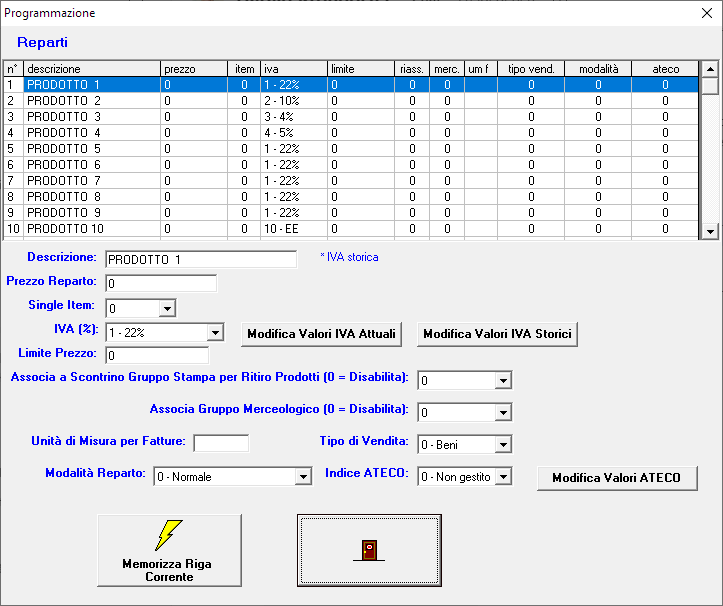

Setting Departments (Reparti) in EPSON FP-Wizard:
