Configuration Germany - TSE driver: [0] Fiskaly – RetailForce Software GmbH

If a new configuration is created for the German KassenSichV, it is possible to choose from different technical security devices. Which TSE is to be used is determined via the selection field "TSE driver". This article describes the configuration of the Fiskaly Cloud TSE.

Depending on the selection, the following input fields change.

If "[0] = Fiskaly" is fixed, the following entries must be made:

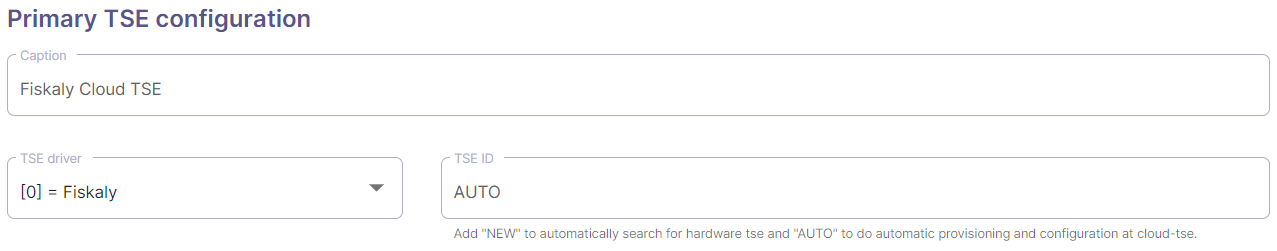

Primary TSE configuration - Configuration of the TSE to be used primarily
- Caption - (arbitrary) designation of the TSE
- TSE driver - Selection to use the Fiskaly Cloud TSE: "[0] = Fiskaly".
- TSE ID
  - If the Fiskaly Cloud TSE is being used, enter "AUTO" - this automatically creates a corresponding Cloud TSE for the client during initialisation.

Attention: by entering the value "AUTO", a new TSE is always created at the provider Fiskaly when

a new client connects to a terminal previously created in the RetailForce portal (initializeClient) and
the corresponding licence (Fiskaly Cloud TSE + Automatic provisioning of fiskaly cloud) is assigned.

Note: If no automatic creation of the TSE is desired, the corresponding ID of the TSE must be entered in the TSE ID field. The following fields Api key and Api secret must also be entered.

TSE Parameter (fiskaly Cloud TSE)
- Api key - is entered automatically (if the TSE ID field has been filled with the value "AUTO").
- Api secret - is entered automatically (if the TSE ID field has been filled with the value "AUTO").
- Admin Puk - Value for resetting the admin pin, min. 10 characters
- Admin Pin - PIN für spezielle Funktionen, min. 6 Zeichen

Note: The TSE is configured according to the values entered in the Admin Puk and Admin Pin fields! These fields are therefore used to define these values in the TSE.

- Max Client per Tse - Defines how many clients/terminals are linked to a TSE (the default value is 5, minimum: 1, maximum 15).

Note: The number of linked clients has no effect on the number of systems invoiced. Fiskaly always invoices according to the number of clients and not according to the number of TSEs. The number of linked clients has an effect on response times (performance).

- Fiskaly connection timeout - Defines the time in milliseconds that the client waits for a response from the fiskaly Cloud TSE before switching to "offline mode" (default value is 5000ms, if a value less than 500 and greater than 10000 is used, the default value is used).

More information on configurations can also be found in the following articles:
