Configuration Germany - TSE driver: [2] swissbit Cloud – RetailForce Software GmbH

Attention: The Swissbit Cloud TSE is only available for legacy systems and will be discontinued from April 1st.

If a new configuration is created for the German KassenSichV, it is possible to choose from different technical security devices. Which TSE is to be used is determined via the selection field "TSE driver". This article describes the configuration of the swissbit Cloud TSE.

Note: In order to be able to use the Swissbit Cloud TSE, the tax number (StNr.) must be entered in the organisation as a company identifier (several company identifiers can be entered). This is a mandatory field for creating the Swissbit Cloud TSE.

Depending on the selection, the following input fields change.

If "[2] = swissbit Cloud" is fixed, the following entries must be made:

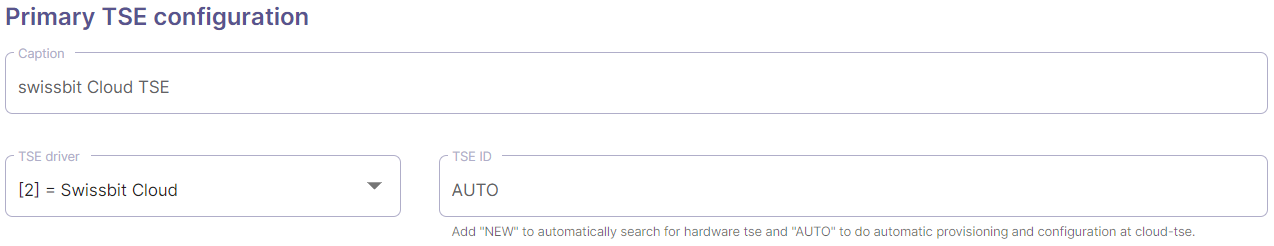

Primary TSE configuration - Configuration of the TSE to be used primarily
- Caption - (arbitrary) designation of the TSE
- TSE driver - Selection for using a swissbit Cloud TSE: "[2] = swissbit Cloud"
- TSE ID
  - If the swissbit Cloud TSE is being used, enter "AUTO" - this automatically creates a corresponding Cloud TSE for the client during initialisation.

Attention: by entering the value "AUTO", a new TSE is always created at the provider swissbit when a new client connects to a terminal previously created in the RetailForce portal!

TSE Parameter (swissbit Cloud TSE)
- Ers code for authentication to swissbit cloud connector - To activate the automatic provisioning of the swissbit Cloud TSE, enter the value "AUTO".
- Connector url - URL of the locally installed FCC (Fiscal Cloud Connectors = SMAERS); default value: http://localhost:20001; enter value "AUTO" to automatically search all ports from 20001 to 20010.

More information on configurations can also be found in the following articles:
