Configuration Germany - TSE driver: [3] swissbit Cloud 2.0

Harald Krondorfer
  • Updated

If a new configuration is created for the German KassenSichV, different technical security devices can be selected. The "TSE driver" selection field is used to specify which TSE is to be used. This article describes the configuration of the Swissbit Cloud 2.0.

Prerequisite

The prerequisite for using a Swissbit Cloud TSE 2.0 is the storage of two parameters at organisation level:

  • SwissbitCloud2_CreditClientId
  • SwissbitCloud2_CreditClientSecret

These parameters are created by the respective distributor. For more information, see Organisation parameters below.

Settings

Depending on your selection, the following input fields will change.

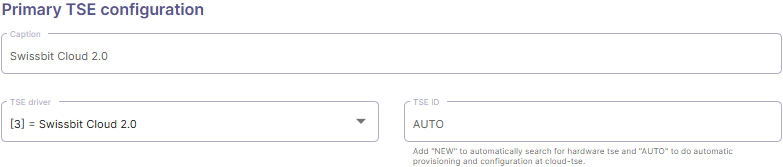

If "[3] = Swissbit Cloud 2.0" is fixed, the following entries must be made:

  • Primary TSE configuration - Setting which TSE is to be used primarily
    • Caption - (arbitrary) Designation of the TSE
    • TSE driver - Selection of the specific TSE: "[3] = Swissbit Cloud 2.0"
    • TSE ID
      • Enter the TSE ID (for existing TSEs - e.g. obtained from another Swissbit sales partner), or
      • Enter the value "AUTO" - this automatically creates a corresponding cloud TSE for the respective fiscal client during initialisation.
Attention: By entering the value "AUTO", a new TSE is always created with the provider Swissbit if:
  • a new client is initialised (initializeClient) and
  • the corresponding licence (Swissbit Cloud 2.0 + Automatic provisioning of swissbit cloud 2.0) is assigned.
Note: If no automatic creation of the TSE is desired, the corresponding ID of the TSE must be entered in the TSE ID field.
  • TSE Parameters (Swissbit Cloud 2.0)
    • TSE Serial Number - Serial number issued by Swissbit for communication with the Cloud TSE. Leave blank for automatic provisioning ("AUTO" in Feld TSE ID)!
    • TSE Access Token - API Secret provided by Swissbit for communication with the Cloud TSE. Leave blank for automatic provisioning ("AUTO" in Feld TSE ID)!
Attention: The TSE parameters are set automatically in the course of automatic provisioning and should therefore not be filled in manually. You should therefore ONLY enter the TSE parameters if you want to transfer an existing TSE to RetailForce. In this case, the corresponding ID of the TSE must be entered in the TSE ID field instead of the value "AUTO".

Organisation parameters

To enable access to the Swissbit Cloud TSE 2.0, certain parameters must be defined at organisation level.

To set these parameters, proceed as follows:

  1. navigate to the relevant organisation for which access is to be enabled and select it,
  2. Click on the "Parameters" action item and then on
  3. + Add Parameter.

The following parameters must be defined:

Parameter Value Description Example
SwissbitCloud2_CreditClientId Corresponding ID (GUID) Authorisation ID a8742f65-fd92-4983-a580-c4da11e76755
SwissbitCloud2_CreditClientSecret Key Customer-specific key ID for access 0112asdf25...32

Further information can also be found in the following article:
