Footer Grafico - EPSON RT devices

The Italian RT devices from EPSON offer the option of printing additional graphic elements on documents.

FOOTER GRAFICO are elements that are placed in the footer area of the document.

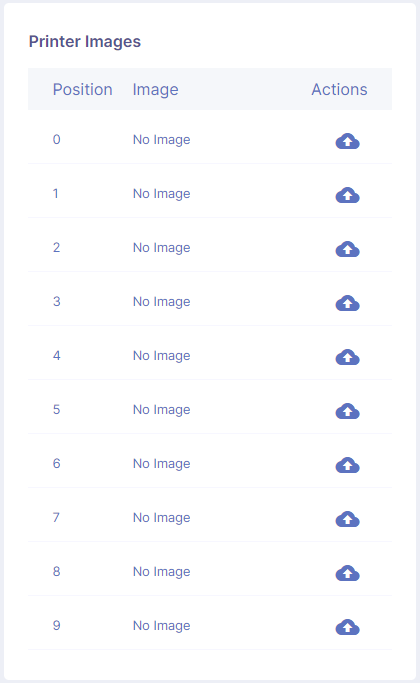

Prepare graphics

Up to 9 graphics (BMP-format) with a maximum size of 19KB per image can be added to the Italy configuration object.

If the configuration is then downloaded from the client (PUT /api/v1/management/clients/byCloud), oder aktualisiert (Update via PUT /api/v1/management/clients/byCloud/{clientId}), werden die Grafiken in das RT-Geräte geladen.

Selecting graphics in payload

By specifying the corresponding index number (1-9), the graphics are added to the document to be printed.

  "footerGraphicIndex": "5",

If index number "0" is specified, no printing takes place! Index "0" deactivates the printing of footer graphics.
